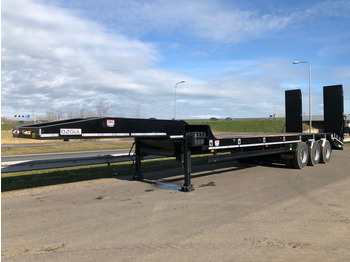

Semi-remorque surbaissé neuf OZGUL 60 Ton 3 axle - LW3 AFR FIX

MASSES & DIMENSIONS

Gross Vehicle Weight (kg) : 70.000 Loading Platform Length (mm) : 10.500

Weight of Axle Group (kg) : 48.000 Total Lenght (mm) : 14.900

Kingpin Capacity (kg) : 22.000 Total Width (mm) : 3.000

Curb Weight (kg) : 13.440 Loading Platform Height (mm) : 1.350

Pay Load (kg) : 60.000 Height of 5.th Wheel (mm) : 1.400

CONSTRUCTIONS

Base Chassis

Heavy duty and extra durability designed I type chassis All welded S355 steel

chassis. Outer frame is UPE 240 profile.

Welding (Chassis) : Automatic ARC submerged.

Welding (Superstructure) : Automatic robot welding.

Axle (Type) : Özgül Turkish Brand Drum brakes 3 x 16 Ton axles

Suspension (Type) : Mechanical leaf spring suspension / 12-14 lines

King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand. + 3.5 inch

Tires : 12+1 Units, 12 R 22.5 Available brand in stock

Rims : 12+1 Units, 9.00 x 22.5 steel rims. Jantas or Ako Brand.

Landing Gear : Mechanical operated by one side, two speed. Gos Brand.

Brake System : Two line air brake system acting on all wheels

Brake Chamber

1 axles with 2 units emergency brake chambers.

2 axle with 4 unit service brake chambers.

Electric System

24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation

SABA Brand.

• 2 x Rear Stop Lights. - 4 x Side Lights.

• 2 x White Lights - 2 x Front Lights

• 2 x Registration Plate Lights - 2 x rotating Lights

Floor

Middle of platform and on the axles complete chequred sugar plate 6/7 mm

steel,edges of the axles are wood and steel ,From the gooseneck end to 1.axles

finishing area edges are 900 mm width,70 mm height hard wood.

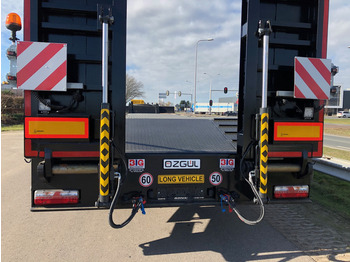

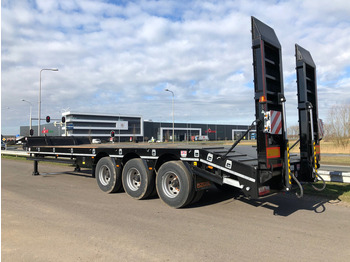

Rear Loading Ramps

Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic

funsion with cable push – button for remote cont.Rear ramps length 2800 mm width

900 mm,covered all steel and 20x40 mm thickness steel bars.

Color : Upon Request

Paint Application

Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats

of acrylic paint.

TECHNICAL SPECIFICATIONS

Accessories

• 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type

• 4 x Certificated Expray mud flaps.

• 1 x Plastic water tank

• 2 x Wheel chocks and holders

• 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm

• 2 x Side Protections steel

• 1 x Tool box.

• 1 x spare Wheel carrier with 1 tire(on the gooseneck)

• 2 x Manual support Legs at the rear.

• 2 x Reflective tape and reflector sign at the rear and sides.

• 2 x Side extensions reflector

• 1 plaque places on bumper
